Integration¶

Architecture overview¶

To access the XpressID service, Veridas will provide you with the following credentials:

XpressID_URL: Base URL used by the native SDK when calling XpressID.start.
XpressID_API_URL: Authentication API base URL used by your backend to obtain access tokens and configure the onboarding flow.
API_KEY: Unique identifier for your client account. This key must remain exclusively in your backend.

Veridas will provide the appropriate URLs and credentials for your environment and region.

Url name	Environment	Region	Url value
XpressID_URL	Sandbox AWS	EMEA	https://xpressid-web-work.eu.veri-das.com/
	Sandbox AWS	AMERS	https://xpressid-web-work.us.veri-das.com/
	Sandbox GCP	EMEA	https://xpressid-web-work.eu8.veri-das.com/
	Production AWS	EMEA	https://xpressid-web.eu.veri-das.com/
	Production AWS	AMERS	https://xpressid-web.us.veri-das.com/
	Production GCP	EMEA	https://xpressid-web.eu8.veri-das.com/
XpressID_API_URL	Sandbox AWS	EMEA	https://api-work.eu.veri-das.com/xpressid/api/v3/
	Sandbox AWS	AMERS	https://api-work.us.veri-das.com/xpressid/api/v3/
	Sandbox GCP	EMEA	https://api-work.eu8.veri-das.com/xpressid/api/v3/
	Production AWS	EMEA	https://api.eu.veri-das.com/xpressid/api/v3/
	Production AWS	AMERS	https://api.us.veri-das.com/xpressid/api/v3/
	Production GCP	EMEA	https://api.eu8.veri-das.com/xpressid/api/v3/

To ensure compliance with Veridas' security protocols, clients must provide information regarding the server IPs where XpressID integration is planned. This requirement applies only to production environments.

Achieving a functional integration of the XpressID service within your infrastructure requires two coordinated parts.

Authentication API¶

Access tokens must always be requested from your backend. That request is also the place where you send the onboarding configuration JSON for the flow you want to run.

The API_KEY is especially sensitive and must never be embedded in the app. Recommended backend safeguards include:

user authentication before requesting a token
abuse prevention such as captcha or rate limiting
DDoS mitigation
token issuance controls and auditability

You can review the token request shape in the API documentation here.

Native SDK¶

The iOS SDK is integrated as a native library and launched with two runtime values:

XpressID_URL
ACCESS_TOKEN

The SDK then handles the onboarding lifecycle on-device and notifies your app when the process finishes or emits intermediate events.

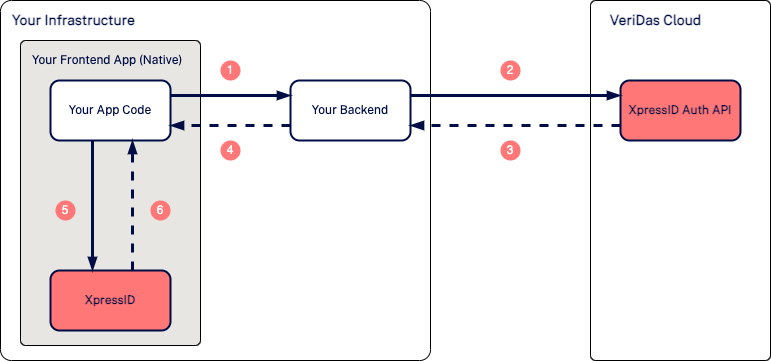

The recommended architecture of a native application using XpressID should follow the next diagram.

Architecture overview

Interaction	Description
1	The user logs in within your application.
2	Your backend requests a token from XpressID Auth API using XpressID_API_URL and API_KEY.
3	XpressID Auth API returns the token response.
4	Your backend returns the ACCESS_TOKEN to the app.
5	The app uses XpressID_URL and ACCESS_TOKEN to launch the native SDK.
6	The SDK notifies the app when the process completes or when intermediate events are emitted.

Module integration¶

The following steps present the preparations that must be made in order to use the XpressID module within your iOS application.

Create a new Xcode Swift project, or use an existing one.
Add the required permissions into Info.plist:
- Privacy - Camera Usage Description
- Privacy - Microphone Usage Description
- Privacy - Location When In Use Usage Description
- iPad only — UIRequiresFullScreen (set to YES) to ensure the SDK can control the screen orientation.
If any of your onboarding configurations enables NFC, enable NFC reading in the app, as explained in NFC reading.
Create a new group named Frameworks inside the project.
Drag and drop all XpressID distributables (.xcframework), including VeridasNfcSDK.xcframework, into the Frameworks group and select:
- Action: Copy files to destination
- Groups: Create groups
- Targets: Check your target
Set the embed option for all xcframeworks to Embed & Sign in the target’s General tab.
Make sure the User Script Sandboxing build option is set to No in the target's Build Settings tab.
Import VeridasXpressID and implement XpressIDDelegate.
If you want to receive process events, also implement XpressIDEventsDelegate and register it with XpressID.setEventsDelegate(delegate:).
Call XpressID.start() with a valid XpressID_URL and access token.

Once the XpressID process completes or an error occurs, onXpressIDFinished() will be invoked by the SDK.

NFC reading¶

The NFC chip of the document is only read when the onboarding configuration enables it (see NFC step). In that case, the host app must declare the NFC capability and the related Info.plist keys. Without them, the system does not let the app open an NFC reading session.

In Signing & Capabilities, add the Near Field Communication Tag Reading capability. The App ID and the provisioning profile must carry the same capability. The app entitlements must include:
```
<key>com.apple.developer.nfc.readersession.formats</key>
<array>
    <string>TAG</string>
</array>
```

Add the application identifiers of the eMRTD chip to Info.plist:

<key>com.apple.developer.nfc.readersession.iso7816.select-identifiers</key>
<array>
    <string>A0000002471001</string>
    <string>A00000024710FF</string>
</array>

Add the usage description shown by the system when the reading starts to Info.plist:

<key>NFCReaderUsageDescription</key>
<string>We use NFC to read the chip of your identity document.</string>

NFC reading needs a physical iPhone. iPads have no NFC reader: on a device that cannot read NFC, the NFC step is skipped and the onboarding continues.

Configuration payload¶

The current native SDK uses the API v3 configuration payload. For new integrations, build the onboarding configuration around:

flowSetup
setup
texts
medias
styles

Those sections can be sent inline in the JSON payload or split into separate texts, medias, and styles files when your backend requests the access token with multipart/form-data.

If you are still migrating from an older version, check the migration guides.

NFC step¶

The NFC reading is a step of a document capture: it runs after the document has been captured, and only for the captures where flowSetup.options.document.captures[].nfc.enabled is true. The data needed to open the chip is obtained from the back end, so the form to enter the document data is normally skipped.

"flowSetup": {
    "stages": ["document"],
    "options": {
        "document": {
            "captures": [
                {
                    "documentTypes": ["SelectedByUser"],
                    "nfc": {
                        "enabled": true,
                        "setup": {
                            "maxRetries": 3
                        }
                    }
                }
            ]
        }
    }
}

Parameter	Description
`enabled`	Reads the NFC chip of the document captured in this step.
`setup.maxRetries`	Maximum number of retries after a failed reading.
`setup.instructionsShow`	Shows the NFC instructions screen.
`setup.cancelButtonInstructionsShow`	Shows the cancel button of the NFC instructions screen. When it is not set, the global `setup` value is used.
`setup.uiOrientation`	Orientation of the NFC screens: `portrait` or `landscape`.

The logo and close button visibility follow the global setup. The texts and media of the NFC screens are set per document capture in texts.document[].nfc and medias.document[].nfc (see Customization).

When NFC is enabled and the device can read NFC, the reading is mandatory: if it cannot be done, the onboarding ends with an error (see NFC-related errors).

States and provinces in the document selector¶

The document selector can ask for the state or province of the document after the country, for the countries whose states or provinces are reported by the back end (the United States and Canada). It is disabled by default. To enable it, set flowSetup.options.document.captures[].documentSelector.setup.regionChooser.enabled to true:

"documentSelector": {
    "setup": {
        "regionChooser": {
            "enabled": true
        }
    }
}

Without this option, the document selector works as before. The texts of the state and province selectors are set in texts.document[].documentSelector (see Customization).

Events¶

The optional onXpressIDEvent(event:) callback receives XpressIDEvent instances on the main thread.

An event has this public shape:

{
    "type": "info",
    "code": "ProcessEvents",
    "message": "Information about events during the process",
    "infoEvent": {
        "code": "DocumentObverseDetection",
        "detail": "The obverse of the document has been captured."
    },
    "eventListened": "VD_capture_obverse",
    "documentIndex": 0
}

The relevant fields are:

type: info or error
code: top-level event family. In practice the SDK currently emits:
- ProcessEvents
- ProcessCancelled
- ProcessCompleted
message: top-level message associated with code
infoEvent.code: detailed event code that identifies the concrete lifecycle transition
infoEvent.detail: human-readable detail for that concrete event
eventListened: raw internal event name received from the underlying stage SDK, when applicable
documentIndex: zero-based document capture index for document-stage and NFC events
selfieNotCenteredTime: continuous time, in seconds, associated with SelfieFaceNotCentered
nfcData: data of the NFC reading, only in some NFC events: retries in NfcReadFailed, and the result of the chip checks in NfcPassiveAuthChecked (accessProtocol, correctlySigned, dataIntegrityVerified, chipAuthentication, activeAuthentication, trustworthy, paceProtocol, initialSelectedAID, readBlockSize)

Fields without a value are not included in the event.

Event families¶

Global and selector events¶

type	infoEvent.code	infoEvent.detail
info	SelectorProcessStarted	Started document selector by country.
info	ClickOnDocumentSelector	Clicked any document option of the selector.
info	SelectorProcessFinished	Finished document selector by country.
info	ACSelectorProcessStarted	Started autoclassification selector.
info	ClickOnDocumentACSelector	Clicked one of the optioncs of the acselector.
info	ACSelectorProcessFinished	Finished autoclassification selector.
info	StartUserProcess	XpressID has been initialized.
info	EndUserProcess	XpressID has been finished.
info	ProcessCancelled	The process has been canceled.
info	ProcessCompleted	The process has been successfully completed.

Document events¶

type	infoEvent.code	infoEvent.detail
info	DocumentProcessStarted	Document capture process has been started.
info	DocumentInstructions	Document instructions shown.
info	DocumentMounted	Document capture process has been prepared.
info	DocumentUnmounted	Document capture process has been finished.
info	DocumentLoaded	Document capture process has been loaded.
info	DocumentCameraPermissionsGranted	Camera permissions have been granted in the document process.
info	DocumentCameraStarted	The camera has been started in the document process.
info	DocumentCameraVideoPlayStarted	The camera is launched correctly on document process.
error	DocumentCameraFailureDefaultError	There was a problem starting the camera in the document process.
error	DocumentCameraFailurePermissionError	There was a permission problem starting the camera in the document process.
info	DocumentSuccessTickFinish	The success tick is fired correctly on document process.
info	DocumentReviewImage	Review image has been displayed in the document process.
info	DocumentContinueClicked	The user has clicked the continue review image button in the document process.
info	DocumentObverseDetection	The obverse of the document has been captured.
info	DocumentReverseDetection	The reverse of the document has been captured.
info	DocumentProcessFinished	Document capture process has been finished.
info	DocumentCloseButtonClicked	The close button has been clicked in the document process.
info	DocumentRepeatClicked	The document capture process has been repeated.
error	DocumentDetectionTimeout	Timeout has been exceeded.
info	DocumentRestartClicked	The user has clicked the restart button in the document process.
info	DocumentRestartProcess	The document capture process needs to restart because an error occurred
info	DocumentManualCapture	The document has been captured manually.
error	DocumentConfigValidationError	The configuration is invalid in the document process.
info	DocumentRestartFromModal	DocumentRestartFromModal
info	DocumentLoseFocusError	The user has lost the focus on the application.

NFC events¶

The NFC events belong to the document capture where the NFC reading runs, identified by documentIndex.

type	infoEvent.code	infoEvent.detail
info	NfcProcessStarted	NFC read process has been started.
info	NfcFlowStarted	NFC capture flow has been started.
info	NfcInstructions	NFC instructions shown.
info	NfcMrzEntered	The user submitted document credentials (MRZ fields or CAN) in the NFC process.
info	NfcReadStarted	A chip read attempt has started in the NFC process.
info	NfcReadSucceeded	The chip was read successfully in the NFC process.
error	NfcReadFailed	A chip read attempt failed in the NFC process.
error	NfcWrongKey	The entered credentials did not unlock the chip in the NFC process.
info	NfcPassiveAuthChecked	Passive Authentication was evaluated for a successful read in the NFC process.
info	NfcCancelled	The user closed the NFC flow themselves.
info	NfcCloseButtonClicked	Close button has been clicked in the NFC process.
info	NfcRestartClicked	The user has clicked the restart button in the NFC process.
info	NfcLoseFocusError	The user has lost the focus on the application.
info	NfcProcessFinished	NFC read process has been finished.

Selfie events¶

type	infoEvent.code	infoEvent.detail
info	SelfieProcessStarted	Selfie capture process has been started.
info	SelfieInstructions	Selfie instructions shown.
info	SelfieMounted	Selfie capture process has been prepared.
info	SelfieUnmounted	Selfie capture process has been finished.
info	SelfieLoaded	Selfie capture process has been loaded.
info	SelfieFlowStarted	Selfie flow started
info	SelfieFaceNotCentered	The face is not centered in the selfie process.
info	SelfieCameraPermissionsGranted	Camera permissions have been granted in the selfie process.
info	SelfieCameraStarted	The camera has been started in the selfie process.
info	SelfieCameraVideoPlayStarted	The camera is launched correctly on selfie process.
info	SelfieCameraRecorderSetup	The camera has started recording in the selfie process.
info	SelfieHeadOkMovement	SelfieHeadOkMovement
error	SelfieHeadWrongMovementError	SelfieHeadWrongMovementError
error	SelfieHeadMovementTimeoutError	SelfieHeadMovementTimeoutError
info	SelfieCameraRecorderStop	There was a problem starting the camera in the selfie process.
info	SelfieSuccessTickFinish	The success tick is fired correctly on selfie process
info	SelfieFaceDetection	Face has been successfully captured in selfie process.
info	SelfieCaptured	Selfie has been successfully captured.
info	SelfieHeadCaptured	Selfie head has been successfully captured.
info	SelfieProcessFinished	Selfie capture process has been finished.
error	SelfieCameraFailureDefaultError	There was a problem starting the camera in the selfie process.
error	SelfieCameraFailurePermissionError	There was a permission problem starting the camera in the selfie process.
error	SelfieDetectionTimeout	Timeout has been exceeded in selfie process.
info	SelfieRepeatClicked	The selfie capture process has been repeated.
info	SelfieCloseButtonClicked	Close button has been clicked in the selfie process.
info	SelfieRestartClicked	The user has clicked the restart button in the selfie process.
info	SelfieRestartProcess	The selfie capture process has been restart because an error occurred.
info	SelfieRestartFromModal	SelfieRestartFromModal
info	SelfieRestartToken	New challenge is generated during the selfie process
error	SelfieCameraRecorderSetupError	An error has been found during the camera setup of the selfie process.
info	SelfieContinueClicked	The user has clicked the continue button in image review screen during the selfie process.
info	SelfieReviewImage	Review image has been displayed in the selfie process.
error	SelfieConfigValidationError	The configuration is invalid in the selfie process.
info	SelfieLoseFocusError	The user has lost the focus on the application.
error	JwtPublicKeyNotFound	The JWT public key was not found in the configuration
error	SelfieInvalidChallengeSignature	The challenge signature is invalid

Video events¶

type	infoEvent.code	infoEvent.detail
info	VideoProcessStarted	Video capture process has been started.
info	VideoInstructions	Video instructions shown.
info	VideoMounted	Video capture process has been prepared.
info	VideoUnmounted	Video capture process has been finished.
info	VideoLoaded	Video capture process has been loaded.
info	VideoCameraPermissionsGranted	Camera permissions have been granted in the video process.
info	VideoCameraStarted	The camera has been started in the video process.
info	VideoCameraVideoPlayStarted	The camera is launched correctly on video process.
info	VideoCameraRecorderSetup	The camera has started recording in the video process.
info	VideoFaceDetection	The face has been captured correctly in the video process.
info	VideoObverseDetection	The document obverse has been captured in the video process.
info	VideoCameraRecorderStop	The camera has been stopped in the video process.
info	VideoReverseDetection	The document reverse has been captured in the video process.
info	VideoSuccessTickFinish	The success tick is fired correctly on video process.
info	VideoCaptureDetection	Video has been successfully captured.
info	VideoProcessFinished	Video capture process has been finished.
error	VideoCameraFailureDefaultError	There was a problem starting the camera in the video process.
error	VideoCameraFailurePermissionError	There was a permission problem starting the camera in the video process.
info	VideoCloseButtonClicked	Close button has been clicked in the video process.
info	VideoRestartProcess	The video capture process has been restart because an error occurred.
info	VideoRestartFromModal	VideoRestartFromModal
info	VideoProcessRestarted	The video capture process has been restarted
info	VideoRestartClicked	The user has clicked the restart button in the video process.
error	VideoDetectionTimeout	Timeout has been exceeded in video process.
info	VideoFaceCenterOrientationError	The face is not centered in the video process.
error	VideoConfigValidationError	The configuration is invalid in the video process.
info	VideoLoseFocusError	The user has lost the focus on the application.

Important distinction¶

XpressIDEvent is the non-terminal event stream emitted during the flow.
XpressIDError, returned in onXpressIDFinished(error:), is the terminal error object used when the SDK closes because the flow cannot continue.

XpressIDError¶

When an error occurs, XpressID tries to handle it transparently. However, certain errors cannot be recovered inside the SDK. In those cases the module closes and returns an XpressIDError instance through onXpressIDFinished.

XpressIDError conforms to Codable and can be represented as:

{
    "type": "error",
    "code": "code",
    "message": "message",
    "stage": "stage"
}

This JSON is also accessible through the description instance variable as a String.

The fields are:

type is always "error" in the current public model.
code is the machine-readable error identifier that your app should use for routing, analytics, or user-facing fallback logic.
stage depends on where the error occurred. It can be one of:
- "document"
- "selfie"
- "video"
message can be either:
- a curated SDK default message
- a backend-provided message when the backend returned a more specific detail

Public error codes returned by the SDK¶

code	Default message
AvailableTypesError	Available types error.
ConfigurationError	A configuration error occurred.
TokenNotAllowed	Token has been expired
OnboardingCompleted	The onboarding process has already been completed
ConnectionError	There has been a problem with the connection
ApiTimeoutError	Connection with the api has exceeded the timeout.
ValidationError	The provided data is not valid
ErrorProcessingRequest	Processing previous request
ErrorUpdateValidation	Validation deleted during processing
UnknownDocumentTypeError	Document Analysis error: The provided image could not be classified. Please verify that the image and the document type are correct.
UnknownAnalysisTypeError	Unknown analysis type
InvalidData	Invalid json data
ScoresConfigurationNotAllowed	ScoresConfiguration field is just allowed in obverse analysis
ScoresConfigurationError	Scores configuration has an incorrect value
InvalidScoresConfigurationField	ScoresConfiguration field contains invalid JSON
UnallowedLeversError	Document Analysis error: The following levers could not be found please check for errors
LogError	An error occurred while sending events to the server.
ProcessCompleteError	An error occurred while completing the process.
ProcessInformationError	An error occurred while processing the information.
StopError	The operation has been stopped by calling stop().
UnknownError	An unknown error occurred: {description}.
UserClosedError	User closed XpressID intentionally.

code	Default message
DocumentAnalysisError	{side} document analysis error: the provided image has given an error while analyzing.
DocumentTypeError	Error retrieving the document type
DocumentTypeMismatchError	The provided document does not match the document type sent
EmptyDocumentError	Empty document file
InvalidImageType	Invalid image type
ImageAlreadyAnalyzedError	The provided image type has already been uploaded and analyzed
ErrorProcessingFile	The file couldn't be processed properly
DocumentServiceNotReachable	Service url not set
DocumentNfcUnavailableError	Document Analysis error: NFC is not available for this document type
BlurredImageError	Document Analysis error: The provided image does not meet the minimum quality
AdditionalDocumentProcessError	Main document not analyzed
DocumentAnalyzingError	Document Analysis error: The provided image has given an error while analyzing

code	Default message
SelfieAnalysisError	Selfie analysis error.
SelfieChallengeError	Selfie challenge retrieval error.
MaxRetriesExceeded	Maximum number of retries exceeded.
JwtPublicKeyNotFound	The JWT public key was not found in the configuration
SelfieInvalidChallengeSignature	The challenge signature is invalid

In a Selfie Alive Pro process, the SDK verifies the signature of the challenge before starting it. If the configuration received from the back end does not include the public key to verify it, the onboarding ends with JwtPublicKeyNotFound as soon as the configuration is loaded. If the signature is not valid, it ends with SelfieInvalidChallengeSignature.

code	Default message
VideoAnalysisError	An error occurred while analysing the video.

When a document capture has NFC enabled and the device can read NFC, the NFC reading is mandatory: if it cannot be done, the onboarding ends with an error, reported with stage document. A device without NFC skips it.

code	Default message
DocumentNfcError	Error retrieving the document NFC data.
NfcUploadError	Error uploading the document NFC data.

If the user closes the NFC reading, the error is UserClosedError. An invalid NFC configuration is reported as CaptureConfigValidationError. Any other failure of the reading is a CaptureError whose message names it (for example passiveAuthenticationFailed or maxRetriesReached).

These errors are reported when a capture SDK closes with an error. The stage field (document, selfie or video) identifies which capture produced it; the NFC reading is part of the document stage.

code	Default message
CameraPermissionError	Camera permission was not granted.
CameraFailureError	There was a problem starting the camera.
CaptureTimeoutError	The capture timeout has been exceeded.
CameraRecorderSetupError	An error occurred while setting up the camera recorder.
CaptureConfigValidationError	The capture configuration is not valid.
CaptureError	The capture finished with an error.

Resume process¶

In the idv operation mode, a user may abandon the process or encounter an error before completion. In those cases, the recommended approach is to request a new token using the resume operation mode and the corresponding validation identifier.

Typical scenarios:

The process was not completed and ProcessCompleted was never received.
The user was interrupted by a recoverable document, selfie, or video error.

When requesting recovery:

if the validation is still active, a new token can be generated and the user can continue from the interruption point
if the validation has expired or is no longer recoverable, a new onboarding must be started

Integrators should:

monitor completion events
track unfinished validations
handle backend response codes explicitly
inform the user when recovery is not possible

Example: Module integration¶

import UIKit
import VeridasXpressID

final class OnboardingViewController: UIViewController {

    let XPRESSID_URL = "Your XpressID_URL"
    let ACCESS_TOKEN = "Your Access_Token"

    func startXpressID() {
        XpressID.setEventsDelegate(delegate: self)
        XpressID.start(
            delegate: self,
            baseUrl: XPRESSID_URL,
            accessToken: ACCESS_TOKEN
        )
    }
}

extension OnboardingViewController: XpressIDDelegate {
    func onXpressIDStarted() {
        print("XpressIDResult -> Started")
    }

    func onXpressIDFinished(error: XpressIDError?) {
        print("XpressIDResult -> Finished: \(error == nil)")
        if let error {
            print("XpressIDError: \(error)")
            dismiss(animated: false)
        }
    }
}

extension OnboardingViewController: XpressIDEventsDelegate {
    func onXpressIDEvent(event: XpressIDEvent) {
        print("Event received: \(event)")
    }
}
